Manifolds

Integrated multi-valve blocks for differential and static pressure instrument isolation, from 6,000 to 10,000 PSI.

Fire Safe ISO 10497-API 607-API 6FA
Fugitive Emission ISO 15848-1 & 2
PED 2014/68/EU
ATEX 2014/34/EU
CU-TR for EAC Countries
CRN for Canada

Why Indra Manifolds

Indra instrumentation manifolds are single-body blocks machined from solid barstock or forged, incorporating 2 to 5 valves to control flow, pressure, and measurement of process media. Designed for Oil & Gas, Power Generation, Chemical and Petrochemical industries, they replace complex assemblies of individual valves and fittings with a compact, high-pressure-rated unit that ensures safety, efficiency, and precise process measurement.

High-Integrity Construction
Reduced Leak Paths
Material Compliance
Direct & Remote Mounting

Technical Specifications

Pressure Rating: 6,000 PSI | 10,000 PSI Standard ratings, higher ratings available for tailor-made configurations
Connection Types: Flanged | Threaded (NPT) | Threaded/Flanged | Threaded/Butt-Weld
Materials: Stainless Steel 316/316L, Duplex, Monel, Hastelloy and other exotic alloys All materials NACE MR0175/ISO 15156 compliant for sour service
Connection Sizes: 1/8" NPT-F | 1/4" NPT-F | 1/2" NPT-F | 3/4" NPT-F | 1" NPT-F
Seal Options: PTFE | Graphite
Mounting: Direct | Remote

Available Configurations

Choose the right configuration for your instrumentation requirements:

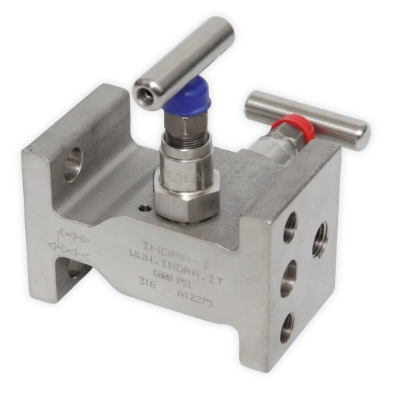

2 Valves Manifolds
One isolation valve and one vent valve, compact solution for static pressure instrument isolation and safe depressurization
Explore

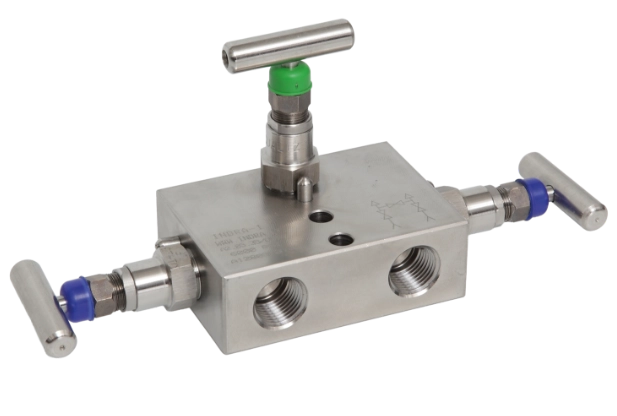

3 Valves Manifolds
Two isolation valves and one equalization valve, the standard solution for differential pressure instrument calibration and isolation
Explore

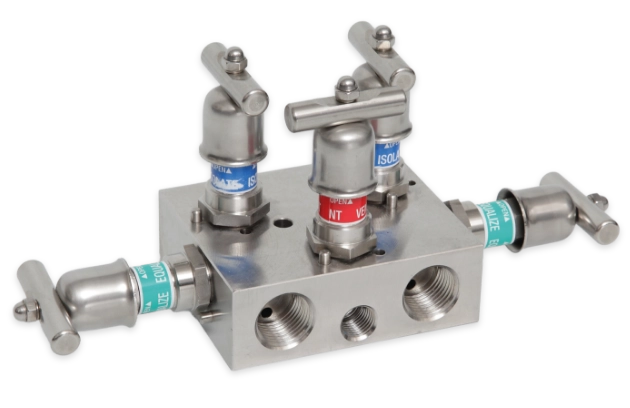

4–5 Valves Manifolds
The most comprehensive solution for differential pressure instruments, full isolation, dual venting, and single or dual equalization in one block
Explore

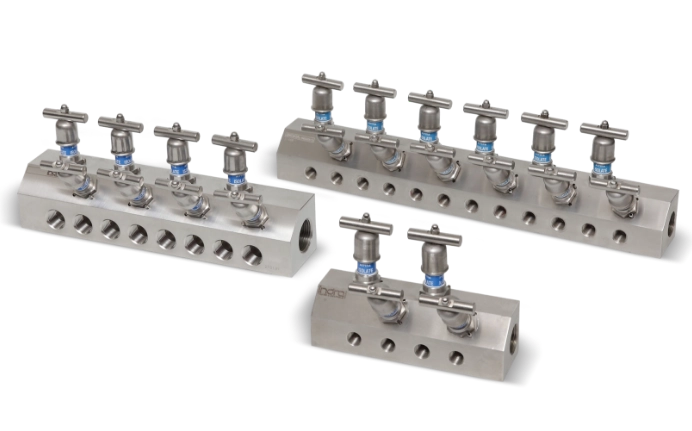

Distribution Manifolds & Drain Collectors
Single-body blocks for centralized distribution or collection of process fluid across multiple instrument lines
Explore

Precision Engineering for Critical Applications

Indra instrumentation manifolds represent a complete solution for pressure and differential pressure measurement in the most demanding industrial environments. Manufactured entirely in-house at our Italian facility near Milan, each manifold is machined from solid barstock or forged, eliminating internal weld points and ensuring a high-integrity pressure boundary under extreme conditions.

The Indra manifold range covers every instrumentation requirement: from the compact 2 valves manifold for static pressure gauge isolation, to the 3 valves manifold for differential pressure instrument calibration, up to the 4–5 valves manifold for applications demanding full isolation, independent dual venting, and equalization. Distribution manifolds extend the range further, providing centralized multi-instrument supply or drain collection from a single body with 4 to 12 independent ways.

All manifolds share the same construction philosophy as Indra needle valves: blow-out proof stem design, non-rotating stem tip, and multiple sealing points guarantee zero leakage and safe operation throughout the product’s service life. Materials include Stainless Steel 316/316L, Duplex, Monel, Hastelloy and other exotic alloys, all NACE MR0175/ISO 15156 compliant for sour gas service.

Available in direct and remote mounting, flanged and threaded process connections, with PTFE or Graphite seals, and configurable with OS&Y bonnet, lockable operators, fire-safe certification, and fugitive emission compliance, Indra manifolds adapt to any project specification.
